The KR-10 is a compact, two-way passive cabinet. Consists of a 10” (2.5” voice coil) LF transducer with Double Asymmetric Rolls Technology (DAR) and waterproof cone. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn.
Ideal for a wide range of fixed installation applications, such as KTV / Karaoke rooms, conference halls, houses of worship, as well as discos and clubs.
The double port located at the rear of the enclosure creates increased bass frequency response. When installed close to a wall, it creates a reflection that extends the low frequency response of the system, creating extra bass boost.
Constructed from MDF and coated in high resistant polyurea paint, giving them greater durability. A wide range of dedicated accessories allows the installation of these loudspeakers in all types of set-ups: ceiling or wall mounted, on a speaker stand or as a satellite with a subwoofer.
Although the KR series can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance. These presets are available on the full range of ARK processors and on the brand’s amplifiers with built-in DSP.
Perfectly suited for:
| → Club & bar installations | |
| → KTV & Karaoke rooms | |
| → Houses of worship | |
| → Public address | |
| → Multi media spaces | |
| → Sound reinforcement |
Features
 |
AGR-8
M8 Eyebolt
|
 |
TU-C02
M20 pole support for combination between sub and satellite cabinet
|
 |
SB-02
Lightweight aluminium stand
|
 |

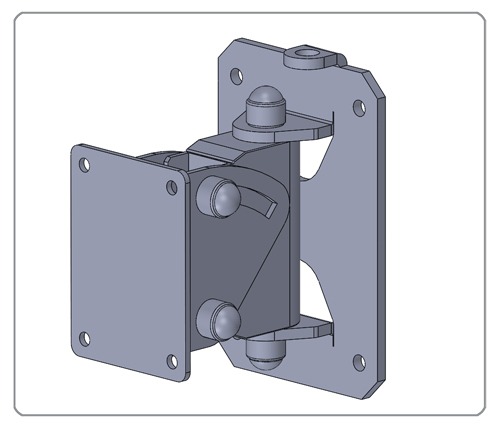

WB-20/2
Wall bracket for KR-10
|
 |
UBR-KR10
U bracket for KR-10
|
Specifications
| Components | LF: 10” speaker, 2.5” (50 mm) fiber glass former and aluminium winding voice coil, waterproof cone with treatment on both sides |
| HF: 1” exit throat (38 mm) voice coil, BMS annular diaphgram driver | |
| Frequency Range | 65 Hz – 22 KHz (-10dB) |
| Sensitivity | 96 dB |
| Max SPL/Peak* | 122 dB / 128 dB peak |
| Rated Power | 300W AES (600W program, 1200W peak) |
| Dispersion | 90º x 60º rotatable |
| Nominal Impedance | 8 Ω |
| Connectors | 2 x Neutrik Speakon NL4MP Pin connections: +1 / -1 input -1 / -1 link |
| Finish | Polyurea coating |
| Material | 15 mm premium MDF |
| Dimensions | 550 x 295 x 330 mm (H x W x D)
|
| Weight | 16 Kg (35.2 lbs) |
| Fittings | 14 x M8, ergonomic handle on the back position, 4 x M6 U-bracket, 6 x M6 wall bracket, 35 mm top hat |
| Accessories | U bracket horizontal & vertical, M8 eyebolts, wall bracket, Top Hat |
