The SUB-08 is an ultra compact double band pass subwoofer delivering highperformance for background sound applications. It uses one 8” transducer with rubber surround and double independent coil.
The SUB-08 has been designed to be used with the QB-5 to extend the low frequency support.
Perfectly suited for:
| → Clubs & Bar installations | |
| → Houses of Worship | |
| → Theatres | |
| → Broadcast | |
| → Multi media spaces | |
| → Restaurants |
Features
Specifications
| Components | LF: 1 x 8″ transducer (2 x 50mm voice coil) |
| Frequency Range | 43 Hz – 160 Hz (-10dB) |
| Frequency Response | 47 Hz – 154 Hz (± 3dB) |
| Sensitivity | 93 dB (1W @ 1m) |
| Max. SPL | 118 dB – 124 dB peak |
| Power | 300 W AES |
| Program Power | 600 W AES |
| Coverage Angle | 360º single unit |
| Impedance | 8 Ω |
| Input Connectors | 2 x Neutrik Speakon NL4MP |
| Material | 15 mm Premium birch plywood |
| Finish | Polyurea coating |

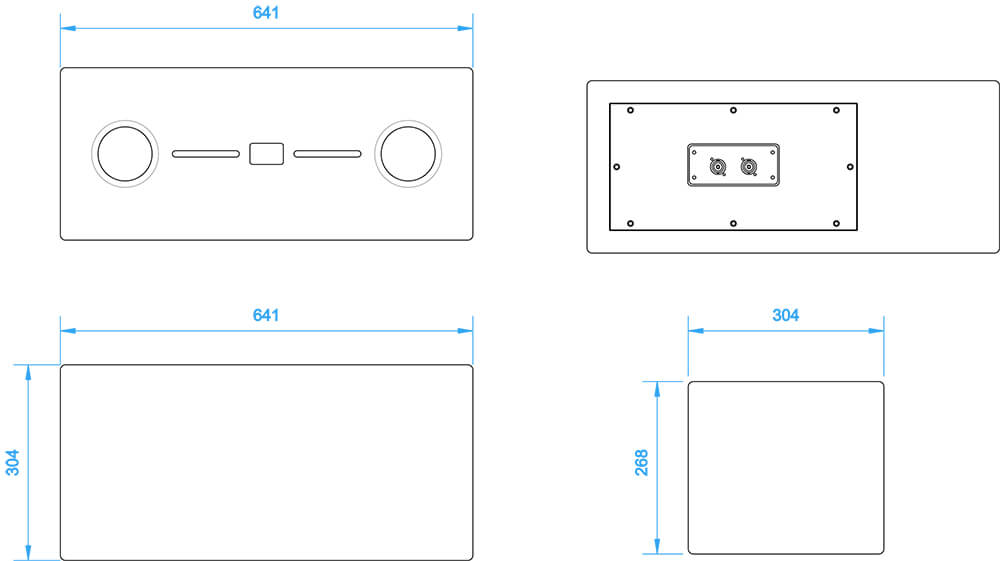

| Dimensions | 268 x 641 x 304 mm (H x W x D) |
| Weight | 10 Kg (22 lbs) |
